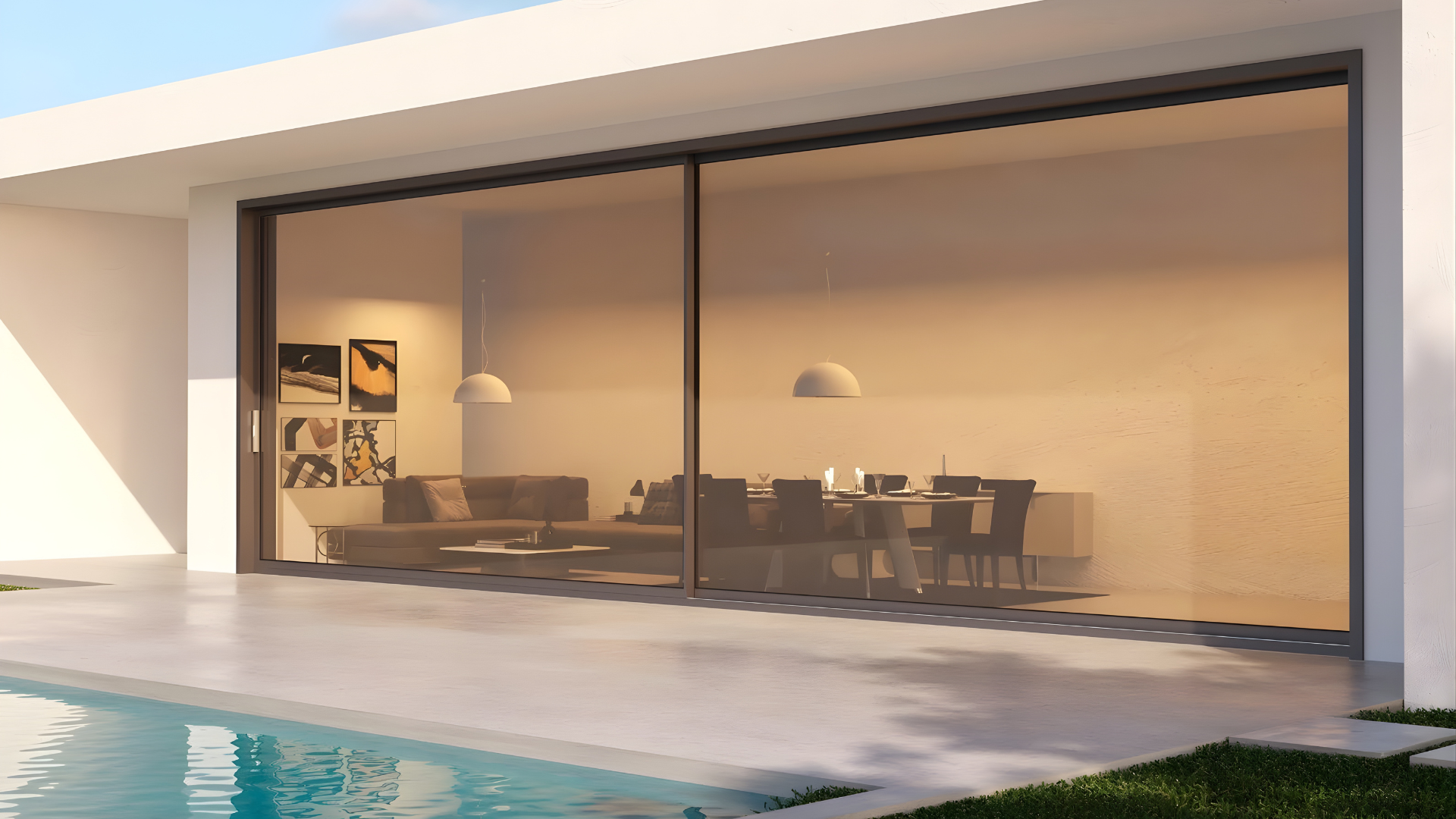

VLX 150 Heavy-Duty Sliding Door

VLX 150 Heavy-Duty Sliding Door in Los Angeles, CA | Lightwell Windows & Doors

The VLX 150 Heavy-Duty Sliding Door is built for openings that most sliding doors can’t handle. With a maximum span of up to 24 feet, this aluminum system replaces entire walls with glass while carrying panels that weigh hundreds of pounds without sagging, sticking, or failing at the track. It’s the door Los Angeles architects specify for hillside homes in Silver Lake, beachfront properties in Manhattan Beach, and modern builds in Venice where indoor-outdoor living is the point, not an afterthought. Lightwell Windows & Doors is an authorized ViewLux installation partner in Los Angeles, which means we sell, install, and stand behind this product with factory-backed training and warranty-safe workmanship. Call (562) 478-8017 to schedule a free on-site measurement and quote.

Call (562) 478-8017

Product Overview – VLX 150 Heavy-Duty Sliding Door

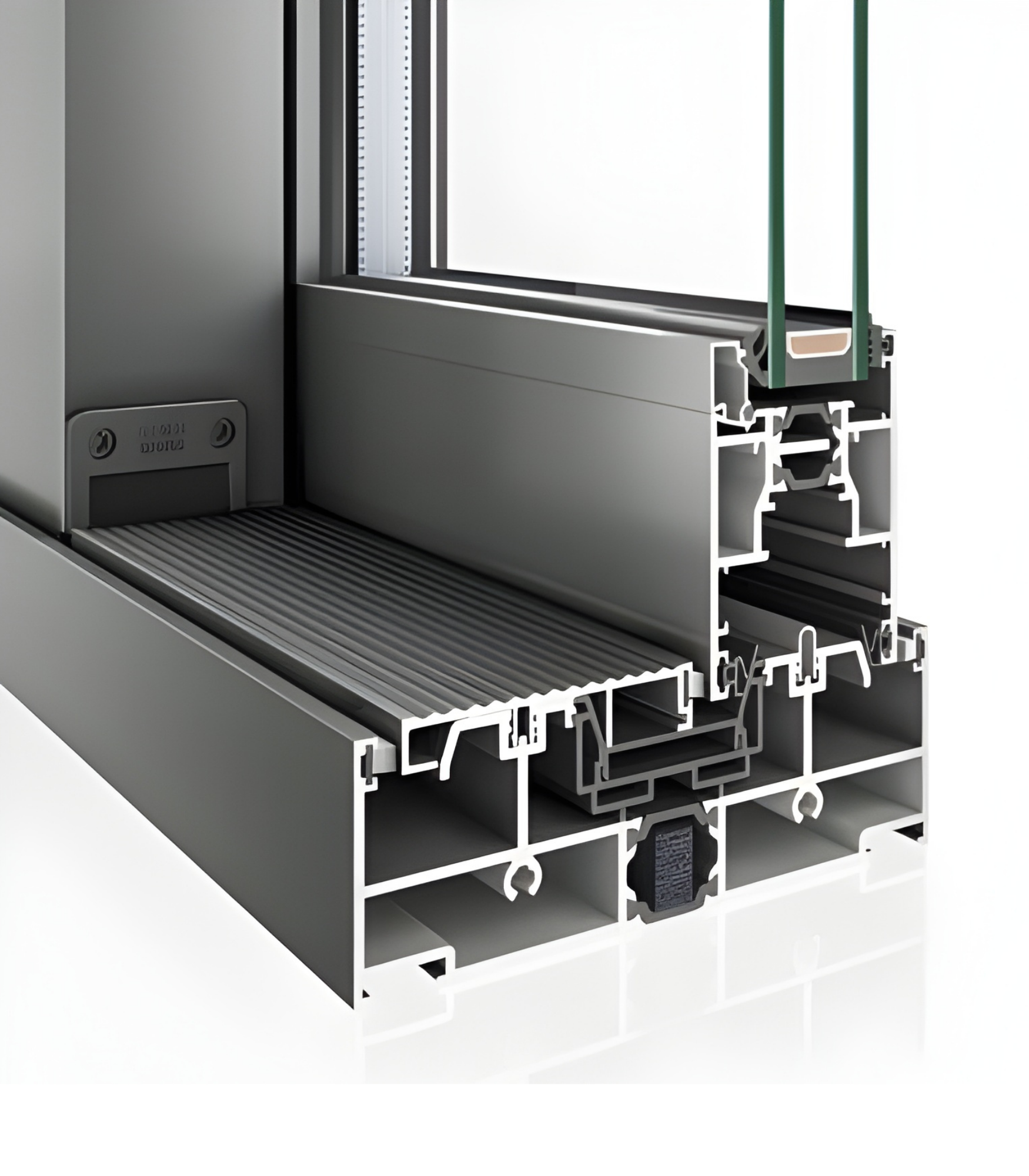

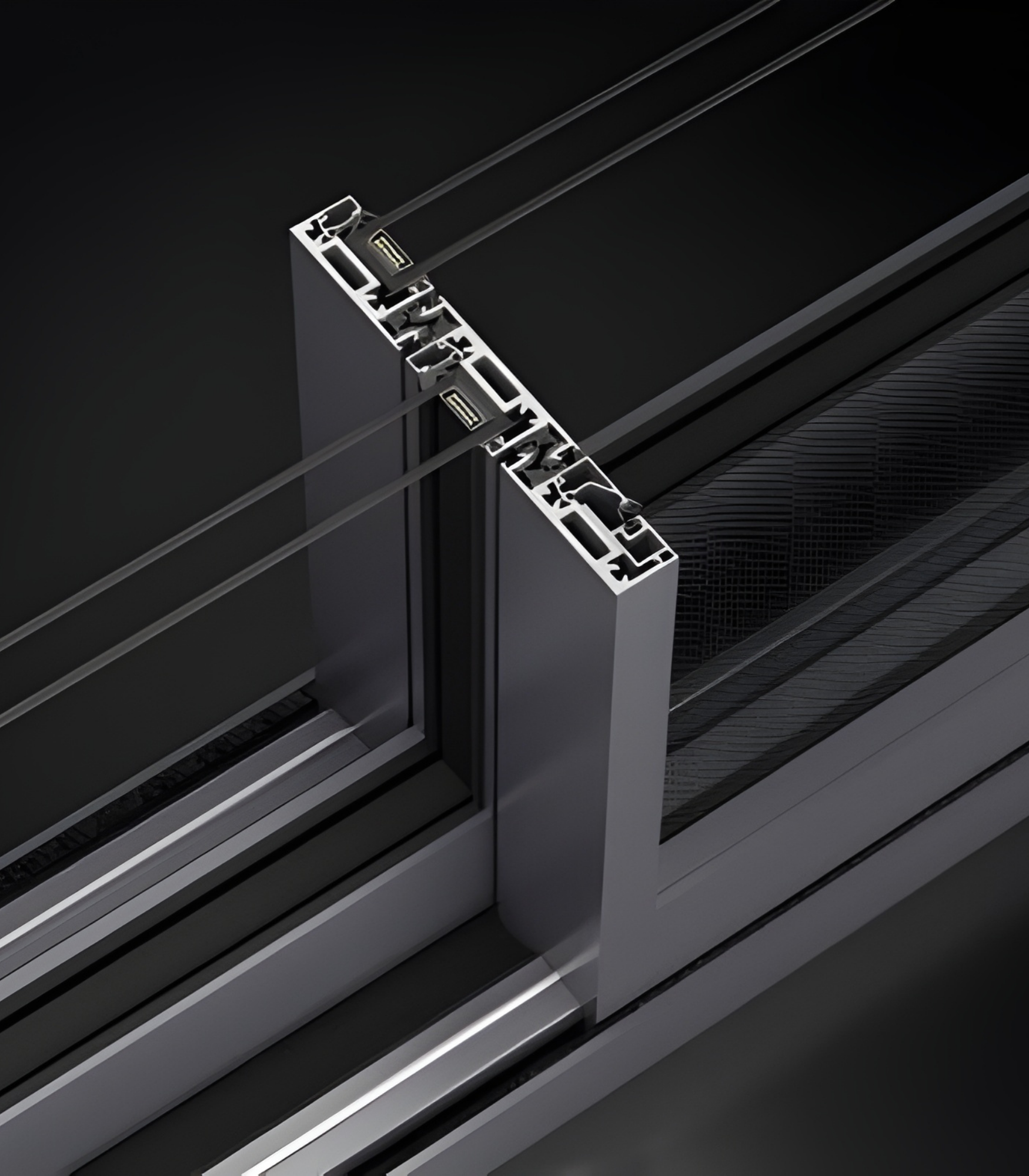

The VLX 150 was designed around one idea: a slider should feel like a wall of glass, not a compromise between a window and a wall. The 0.118-inch wall thickness on the aluminum extrusion is significantly heavier than what you find on standard residential sliders, and that extra material is what allows the system to stretch to 24 feet without deflection. The 2.95-inch profile width keeps sightlines clean while housing the reinforcement and hardware that make the door operate smoothly year after year.

This is a strength-focused large-span aluminum slider, built with robust stainless hardware and available in multi-track configurations. Buyers choose the VLX 150 when they want a two-track door for a wide opening, a three-track door to stack three panels to one side, or a four-track setup that opens up an entire corner of a room. We see this door going into Los Angeles homes where the living room opens to a pool deck, where a dining room connects to a courtyard, or where a primary suite faces the San Gabriel Mountains and the owner wants that view unobstructed.

The hardware matters more than most people realize. Rollers take the full weight of every panel every time the door moves. The VLX 150 uses stainless steel roller assemblies and stainless track caps, which resists the corrosion that eventually kills cheaper hardware, especially within a few miles of the Pacific. In Los Angeles, where salt air, strong sun, and temperature swings are all part of daily life, that hardware choice is the difference between a door that glides for 20 years and one that needs service in five.

As an authorized ViewLux partner, Lightwell Windows & Doors orders every VLX 150 direct from the factory with your exact dimensions, finish, and glass package. We do not stock generic sizes and hope they fit. We measure, we configure, we install, and we warranty the work.

Technical Specifications

The numbers tell the story. The VLX 150 is engineered for size and weight, and the specs below are the ones that matter when you’re comparing systems.

• Wall thickness: 0.118 inches – roughly 40 percent thicker than typical residential aluminum extrusions
• Profile width: 2.95 inches – slim enough for modern aesthetics, deep enough for structural integrity
• Maximum span: Up to 24 feet wide, depending on panel count and configuration

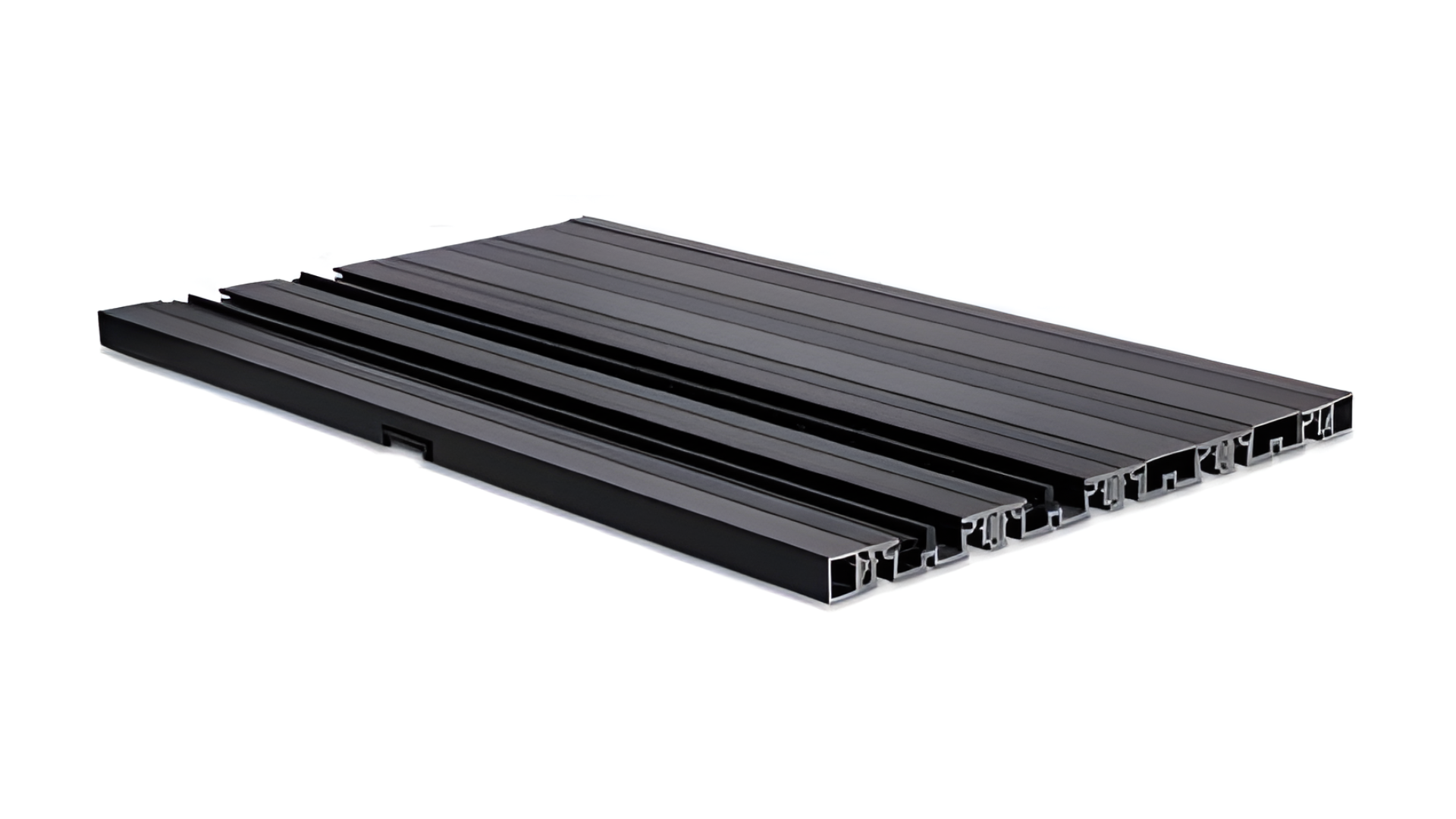

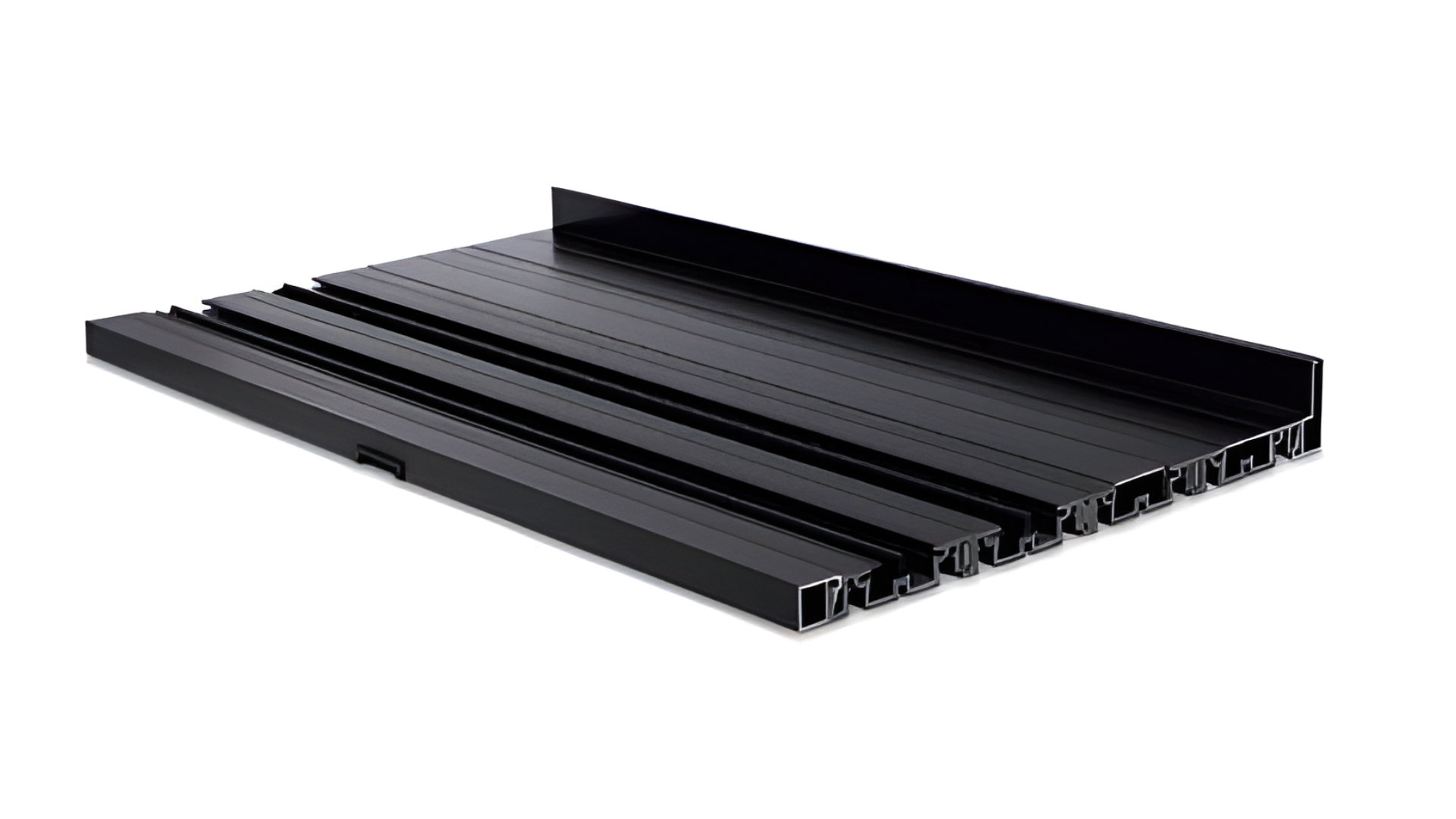

• Track configurations: 2-Track, 3-Track, and 4-Track systems for stacking panels to one or both sides
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, and Black Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood
• Screen options: Retractable screen or sliding screen, both integrated with the track system
• Performance compliance: NFRC-rated thermal performance, AAMA 2400/2410 installation standards, AAMA 812 sealant specification

Performance Features

The VLX 150 is not just about size. It’s a performance product, and these six areas are where a heavy-duty aluminum slider either earns its price or disappoints.

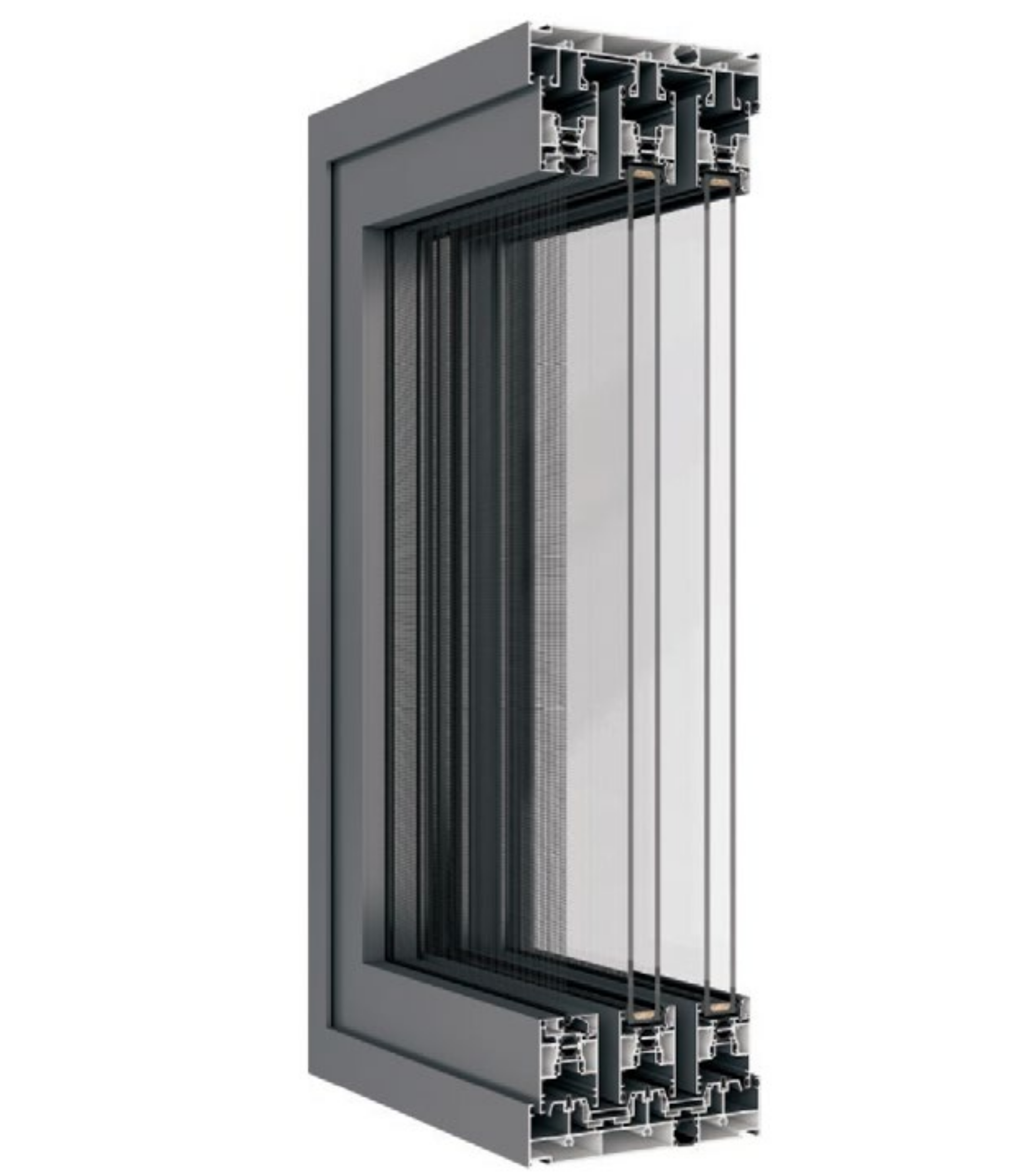

Thermal Efficiency – The VLX 150 frame uses thermal break technology that separates the interior and exterior aluminum faces, which is what allows it to achieve measurable NFRC-rated energy performance. Without a thermal break, an aluminum frame becomes a heat bridge, and a Los Angeles summer will pour heat through the frame into your living room. With it, the frame stays dramatically cooler on the interior side, and your air conditioning works less.

Acoustic Performance – Sound control is a real concern for Los Angeles homeowners near Ventura Boulevard, the 101, or LAX flight paths. The VLX 150 pairs heavy frames with laminated glass options to cut exterior noise. A laminated glass package on this frame meaningfully reduces traffic rumble and aircraft noise, which is why we often recommend it for homes in Westchester, Studio City, and El Segundo.

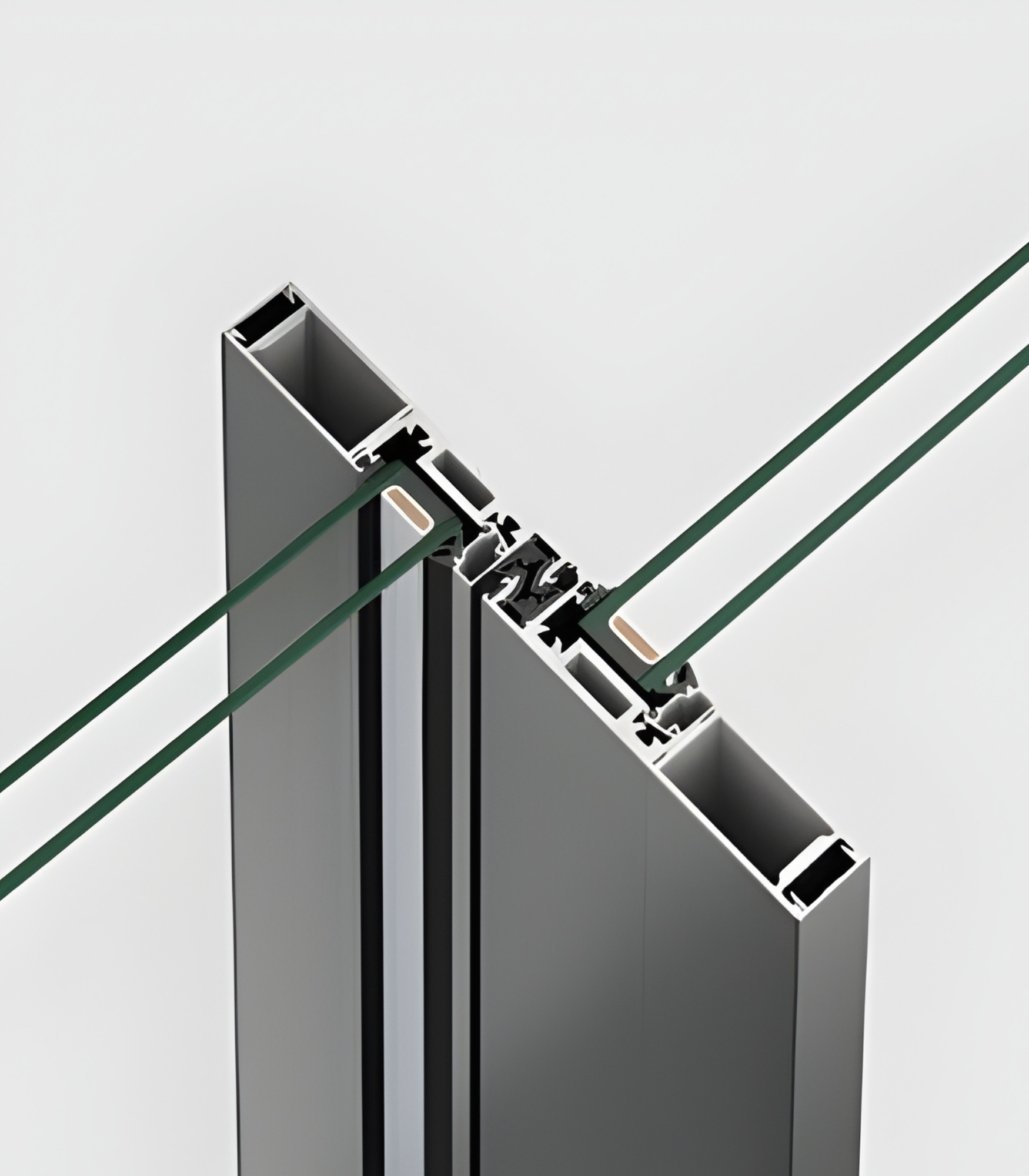

Airtightness & Weather Seal – The VLX 150 uses interlocking panel seals and compression gaskets that close tight when the door shuts. We install every perimeter joint with AAMA 812 low-expansion foam sealant, which is the specified product for this system. That sealant keeps drafts out, keeps conditioned air in, and prevents the interior walls around the door from developing air-leak stains over time.

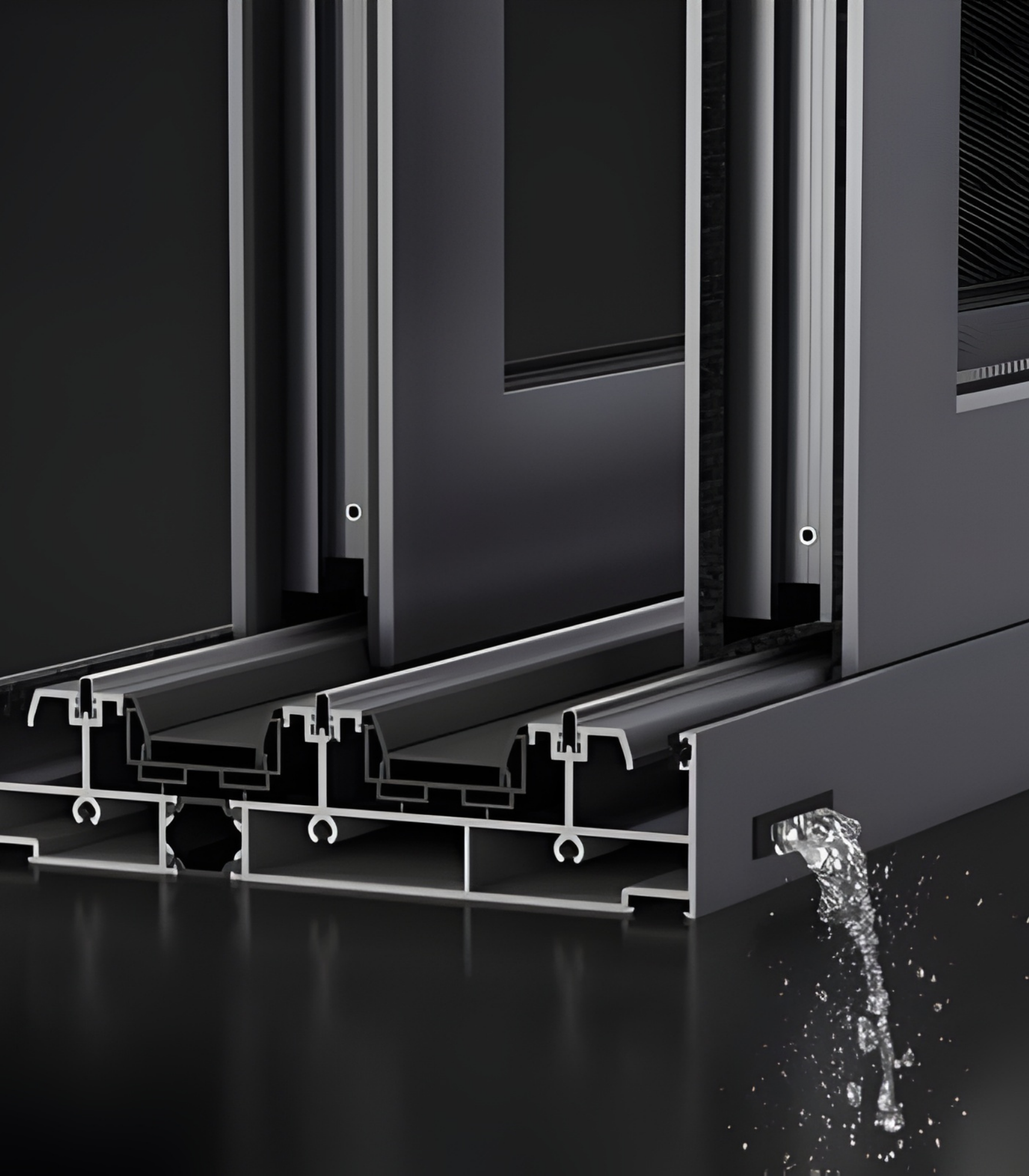

Waterproofing – A big sliding door in Los Angeles gets hit with rain, garden hose overspray, and in coastal neighborhoods, wind-driven moisture. The VLX 150 is engineered to shed water through integrated drainage channels in the sill, and our installation protocol includes a full water test before we call the job done. Proper sill flashing and the AAMA 812 perimeter seal are what prevent water from ever reaching your subfloor.

Wind Resistance – Local wind-load requirements vary across Los Angeles County. Homes in the Santa Ana wind corridors of the Inland Empire-adjacent valleys, or on exposed ridgelines in Bel Air and the Hollywood Hills, need doors rated for gusts that can exceed 70 mph. The VLX 150’s wall thickness and reinforced mullions allow it to meet those wind-load calculations, and we verify the rating for your specific site during the quoting process.

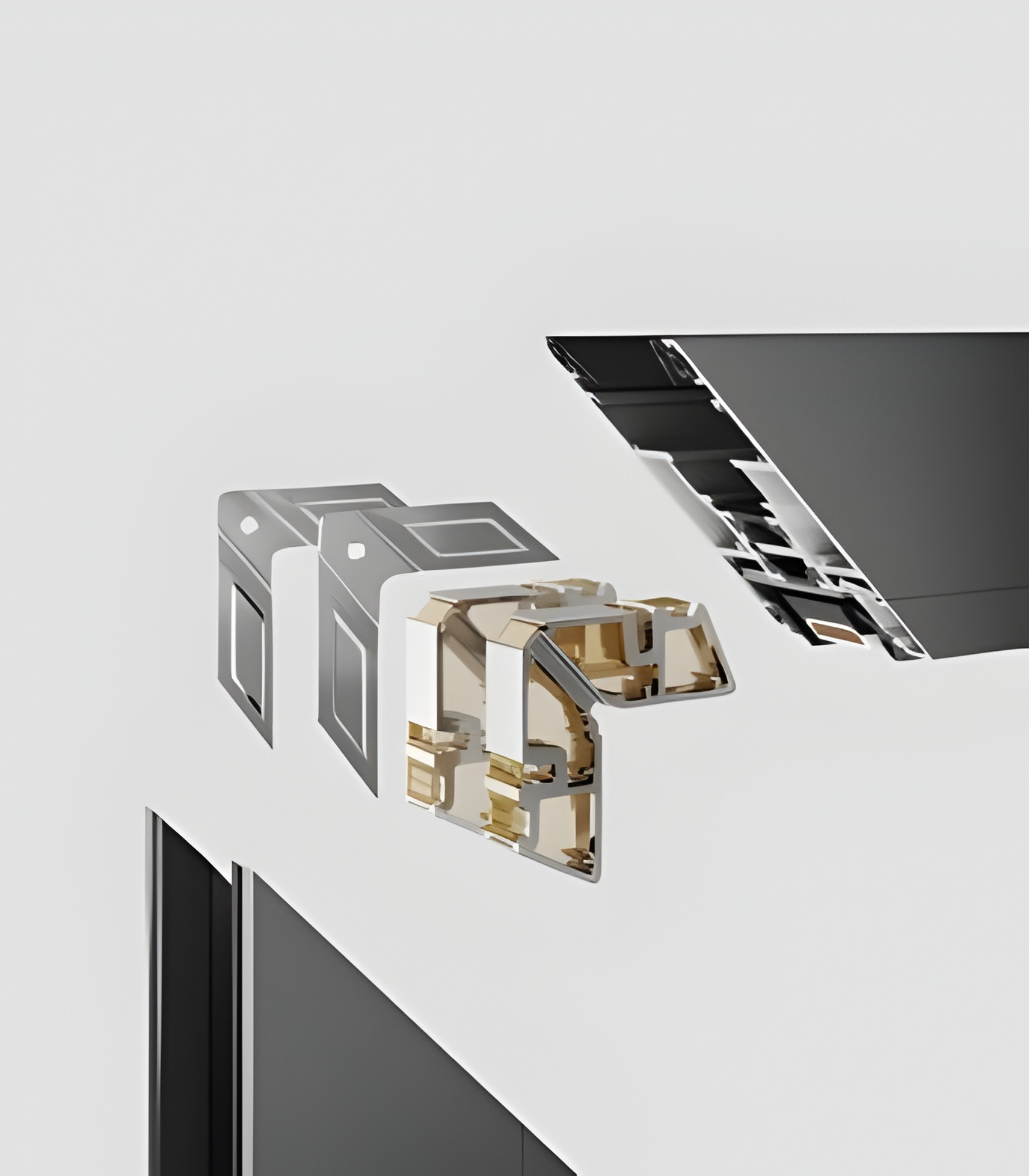

Security & Hardware – The stainless steel multi-point locking system on the VLX 150 is substantial. Panels lock into the header and sill, not just into each other. That makes forced entry significantly harder. For Los Angeles homeowners looking at impact-resistant laminated glass, it also creates a system that holds together under impact rather than shattering open like standard annealed glass.

Color & Glass Options

The VLX 150 offers six finish options, and the right choice depends on your home’s architecture. Premium Black is the most popular finish in Los Angeles right now, especially for modern and contemporary builds where the door frame should disappear into the shadow line. Pure White suits coastal homes and traditional styles from Hancock Park to San Marino. Anodized Silver is the classic aluminum look, understated and works well on mid-century homes in the hills. Bronze leans warm and pairs well with homes that have earth-tone exteriors. Champagne is lighter than bronze with a subtle warmth that flatters Spanish and Mediterranean styles common across Los Angeles. Teak Wood is a wood-grain finish that gives you the look of timber with zero maintenance.

On the glass side, Clear maximizes light transmission. Low-E is the energy workhorse, reflecting heat while letting visible light through. Tempered glass is safety glass that shatters into small pieces rather than large shards, which is required in many door applications by code. Laminated glass holds together when broken and is our recommendation for security, sound control, and impact resistance. Gray Tint and Black Tint reduce glare and solar heat gain, which matters for west-facing openings that get hammered by Los Angeles afternoon sun.

Installation by Lightwell Windows & Doors in Los Angeles

Nobody gets the warranty they paid for if the door isn’t installed correctly. That’s the uncomfortable truth about large sliding doors. A 24-foot VLX 150 weighs hundreds of pounds, and if the sill isn’t perfectly level, if the jambs aren’t plumb, if the header isn’t square, the door will stick, bind, sag, and eventually fail. The manufacturer warranty covers defects in materials and workmanship at the factory. It does not cover failures caused by bad installation, which is precisely why hiring an authorized partner matters.

Lightwell Windows & Doors installs every VLX 150 in Los Angeles according to AAMA 2400 and AAMA 2410 standards. That starts with a pre-installation inspection of the rough opening to confirm the structure is ready to carry the load. We set the frame level, plumb, and square using shims and anchoring specified for the wall type. We seal every perimeter joint with AAMA 812 low-expansion foam, then apply exterior flashing and interior trim as specified. After the panels are hung and adjusted, we run a water test on the sill and bottom corners. We also verify panel operation across the full travel of every track before we clean the site and close out the job.

Los Angeles brings its own considerations. Stucco is common, and cutting into stucco to enlarge an opening for a larger slider requires proper flashing details to prevent water intrusion. Coastal homes in Playa del Rey and San Pedro deal with salt air, so we specify stainless fasteners and hardware. Hillside homes in Mount Washington or Baldwin Hills may require structural reinforcement of the header before we touch the opening. We handle all of that, and we coordinate permits when required.

Improper installation voids the manufacturer warranty. It’s not something we say to scare people; it’s what the factory documentation says. Installing through an authorized ViewLux partner like Lightwell Windows & Doors keeps your warranty intact and gives you one accountable company for the product and the work.

Frequently Asked Questions – VLX 150 Heavy-Duty Sliding Door

Get a Quote – VLX 150 Heavy-Duty Sliding Door in Los Angeles

If you’re planning a large opening or replacing an existing sliding door in Los Angeles, we’d like to measure it. We’ll spec the right VLX 150 configuration for your home, provide a written line-item quote, and walk you through track options, glass packages, and finishes. Free on-site measurement, free estimate, no pressure. Call Lightwell Windows & Doors at (562) 478-8017 to schedule yours.

Written by the team at Lightwell Windows & Doors, authorized ViewLux installation partner serving Los Angeles, CA.
