VLX 80 Fixed / Picture Window

VLX 80 Fixed / Picture Window in Los Angeles, CA | Lightwell Windows & Doors

The VLX 80 Fixed / Picture Window from ViewLux is a non-operable window built around one idea: as much glass as the frame can safely hold. We install this series throughout Los Angeles for homeowners who want a clean sightline to the hills, the skyline, or the backyard without mullions, handles, or hinges breaking the view. The frame profile runs just 1.97 inches wide, so glass dominates the opening. Lightwell Windows & Doors is an authorized ViewLux installation partner in Los Angeles, which means you get the product exactly as engineered plus an install that keeps the manufacturer warranty intact. Call (562) 478-8017 to talk about your project.

Call (562) 478-8017

Product Overview – VLX 80 Fixed / Picture Window

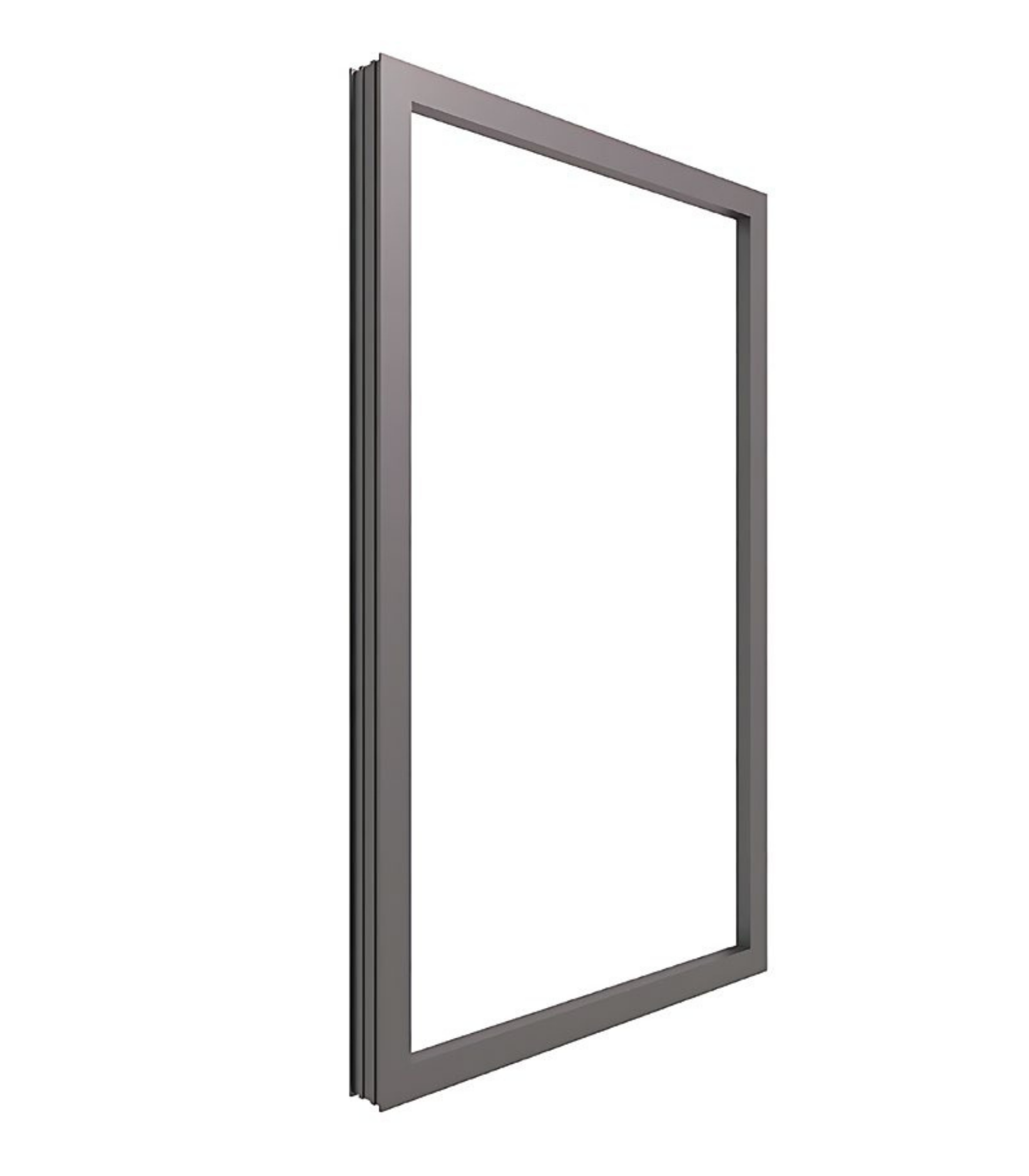

The VLX 80 is what architects call a “maximally glazed” fixed unit. That’s a precise term: the aluminum frame is engineered to be as thin as it can be while still doing its structural job. At a 1.97-inch profile width, the frame nearly disappears, leaving a sheet of glass that can span up to 120 inches wide in a single lite. No mullions through the middle. No visible hardware. No operating sash to interrupt the plane of the wall.

In Los Angeles, where indoor-outdoor living is the default, this window lands in the right places. We’ve installed VLX 80s in mid-century homes in the Hollywood Hills where the original single-pane glass went foggy years ago, in new builds in Venice that frame a specific palm or a sliver of ocean, and in flipped houses in Silver Lake where the buyer wanted a gallery feel without a gallery budget. The common thread is the same: the room feels bigger because the wall reads as glass, not as window.

The fixed design also means fewer moving parts, which means fewer failure points over time. Aluminum resists the UV, salt air, and temperature swings that Los Angeles throws at other frame materials. There’s nothing to warp, swell, or rot. It’s one of the rare products where the simplest version is also the most durable version.

Buyers choose the VLX 80 Fixed / Picture Window for three reasons. First, the opening size. Second, the minimal frame. Third, the price point relative to comparable European fixed windows. The series hits a sweet spot: commercial-grade engineering at a residential price.

Technical Specifications

Here are the numbers that matter when you’re comparing the VLX 80 against other fixed window lines. We’ve listed them plainly because spec sheets should be plain.

• Wall thickness: 0.079 inches of extruded aluminum. Thicker than economy residential systems, which typically run 0.050 to 0.070 inches. This is what allows the wider spans without frame deflection.
• Profile width (visible frame): 1.97 inches. This is the face of the frame you see from inside the room. Slim enough that it reads as a shadow line, not a border.
• Maximum span: Up to 120 inches wide in a single unit, depending on glass type, wind-load requirements, and building code in your specific Los Angeles jurisdiction.
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, Black Tint. Insulated glass units available in dual-pane configurations.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
• Performance standards: NFRC-rated energy performance via thermal break technology. AAMA 2400/2410 installation standard compliance. AAMA 812 low-expansion foam sealant on all perimeter joints.
• Glazing type: Fixed (non-operable). Structural glazing or standard glazing bead, depending on application.

Performance Features

Thermal Efficiency
Aluminum conducts heat, which is why cheap aluminum windows sweat and bake. The VLX 80 series uses a polyamide thermal break inside the extrusion to separate the interior and exterior frame faces. This cuts thermal transfer enough to earn NFRC ratings that meet California Title 24 energy requirements. In Los Angeles, where summer afternoon sun loads up west-facing walls, the thermal break is doing real work every day.

Acoustic Performance
Fixed windows seal tighter than operable ones because there’s no moving sash to leak sound. Add laminated glass and the VLX 80 drops street noise significantly. We’ve installed these on Fountain Avenue, on busy stretches of Pico, and under the LAX flight path in Inglewood. Laminated glass is the single biggest acoustic upgrade you can make to a window, and the fixed design amplifies its effect.

Airtightness & Weather Seal
The VLX 80 uses a continuous perimeter seal rather than weatherstripping that compresses and fails over time. The fixed sash sits in a glazing channel that doesn’t move, so the air barrier doesn’t break down the way it does on sliders and casements. When we install, we add AAMA 812 low-expansion foam sealant on every perimeter joint, which fills micro-gaps that even the tightest dry-fit leaves behind.

Waterproofing
Water intrusion on a fixed window almost always comes from the installation, not the window. That’s why the AAMA 2400/2410 standard matters. It covers proper flashing integration, sill pan detailing, and weep system function. We follow it on every Los Angeles install because winter rainstorms will find any shortcut within one season.

Wind Resistance
Los Angeles building codes require wind-load ratings that vary by hillside exposure, proximity to canyons, and elevation. A wide fixed window catches more wind than a narrow one, which is why the 0.079-inch wall thickness and extrusion design matter. The wind-load rating for your specific opening gets calculated during the estimate, not guessed at.

Security & Hardware
There’s no hardware to see, which is the point, but there’s also no hardware to fail. The fixed sash is mechanically secured into the frame, not hinged or clipped. Add laminated glass and you get impact resistance that holds the pane together even if it’s struck. On ground-floor Los Angeles installations where street access is a concern, laminated glass is a quiet, invisible upgrade over bars or security film.

Color & Glass Options

Six finishes cover most of what Los Angeles architecture asks for. Premium Black is the current default for modern and contemporary homes; it reads as a crisp line against white stucco and matches black steel door systems. Pure White suits traditional Spanish and Mediterranean homes where dark frames would fight the design. Anodized Silver is the honest, industrial finish that works on true mid-century buildings. Bronze and Champagne are warmer metallics that pair well with interior brass fixtures and exterior stone. Teak Wood is a powder-coated woodgrain finish that gives the aluminum frame a warm, natural look without the maintenance of real wood.

On glass, Clear is the pure view, Low-E is the energy upgrade that still looks clear, and Frosted works for bathrooms, side yards, or anywhere privacy matters without losing daylight. Tempered glass meets code for windows near doors and low sills. Laminated glass buys impact resistance and serious sound reduction. Gray Tint and Black Tint reduce glare and solar heat on sun-blasted west and south exposures, though they’ll change how colors look from inside.

Installation by Lightwell Windows & Doors in Los Angeles

Here’s the part most window companies gloss over, and it’s the part we care about most. A VLX 80 Fixed / Picture Window is only as good as the opening it sits in. The product is excellent. The install is where performance lives or dies.

Every installation starts with a pre-install inspection. We measure the rough opening in three places, not one, and check the framing condition, the existing flashing, and the exterior cladding interface. In Los Angeles, that exterior might be stucco, wood siding, hardie plank, or a mix depending on when the house was built and who’s remodeled it since. Each cladding type wants a different flashing detail, and we match it.

We set the window level, plumb, and square before anything gets sealed. A fixed window that’s racked even 1/8 inch will show it in the sightlines. Then we insulate the rough opening around the full perimeter and apply AAMA 812 low-expansion foam sealant on every joint. That foam matters: it seals without pressure, so it won’t bow the frame the way high-expansion foams will. Next, the exterior flashing and sill pan go in per AAMA 2400/2410 standards, and we water-test before trim goes back on.

Cleanup happens before we leave. The old window, the old caulk, the dust. The job isn’t done until the opening looks like a window, not a construction site.

One more thing worth saying plainly: improper installation voids the manufacturer warranty. We hear this from customers who bought windows elsewhere, had a handyman install them, and then got a failed seal two years later with no recourse. Lightwell Windows & Doors is an authorized ViewLux partner. The warranty stays alive because the install is done to the manufacturer’s spec and the AAMA standards.

Frequently Asked Questions – VLX 80 Fixed / Picture Window

What is the lead time for the VLX 80 Fixed / Picture Window?
Lead time on the VLX 80 Fixed / Picture Window typically runs 3 to 6 weeks from order to delivery at our Los Angeles warehouse, depending on glass type and finish availability. Custom sizes and laminated glass configurations can push it to the longer end of that range. We give you a firm delivery date when you sign, not a guess. Call (562) 478-8017 for a current lead time on your specific configuration.

Does the VLX 80 qualify for energy tax credits or rebates?
Because the VLX 80 carries NFRC ratings that meet Title 24 energy requirements, it often qualifies for LA DWP or local utility rebate programs when paired with Low-E glass. Qualification depends on the specific ratings for your glass package and your project scope. We’ll walk you through rebate paperwork as part of the estimate.

What warranty comes with the VLX 80 Fixed / Picture Window?
ViewLux provides a manufacturer warranty on the frame, glass, and factory-sealed components. Because Lightwell Windows & Doors is an authorized installation partner, our installation workmanship carries its own separate coverage. The combined warranty only holds if the window is installed to spec, which is the only way we install them. Call (562) 478-8017 for the full warranty details on your model.

Can I customize the size of the VLX 80 Fixed / Picture Window?
Yes, within the maximum span of 120 inches wide. The VLX 80 is built to your rough opening dimensions, not pulled off a shelf in stock sizes. Height, width, and glass package are all specified per unit, which is why the lead time runs several weeks. We’ll measure to the sixteenth of an inch during the site visit.

How do I maintain aluminum frames on a fixed window?
Aluminum frames need almost nothing: an occasional wipe with mild soap and water, and a check that the exterior weep holes stay clear of dust and debris. The powder-coated and anodized finishes don’t need painting or sealing. In dusty Los Angeles neighborhoods, cleaning the glass and frame twice a year is enough to keep things looking new.

Get a Quote – VLX 80 Fixed / Picture Window in Los Angeles

If you’re planning an opening that deserves a VLX 80, we’ll measure it properly and give you a written line-item quote. No change orders, no surprises. Lightwell Windows & Doors installs the VLX 80 Fixed / Picture Window throughout Los Angeles to AAMA standards, warranty-safe and water-tested. Call (562) 478-8017 to schedule your free on-site measurement and start your project.

Written by the team at Lightwell Windows & Doors, authorized ViewLux installation partners serving Los Angeles, CA.
